Model
|

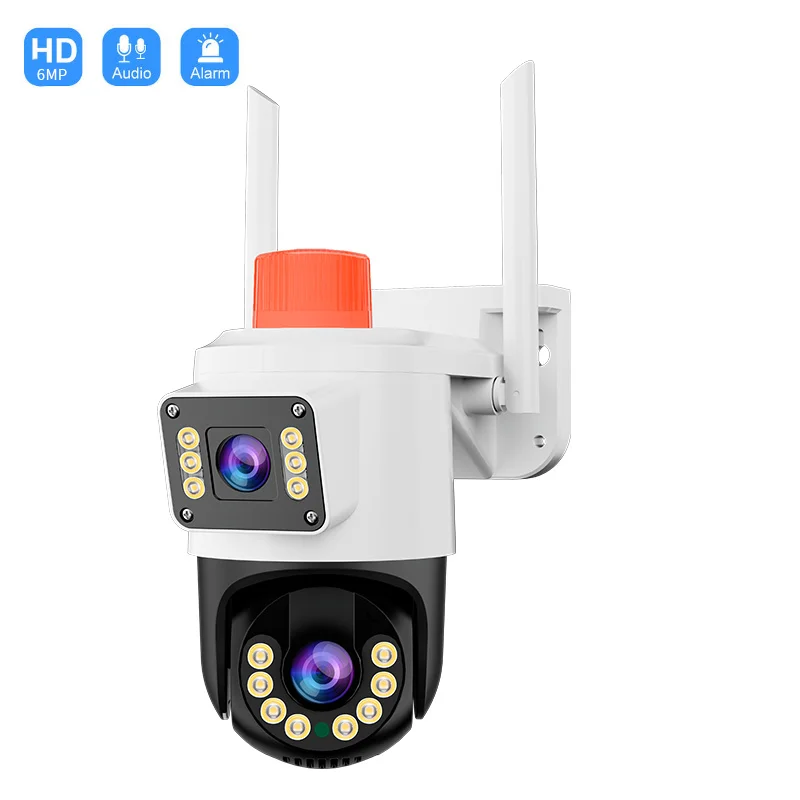

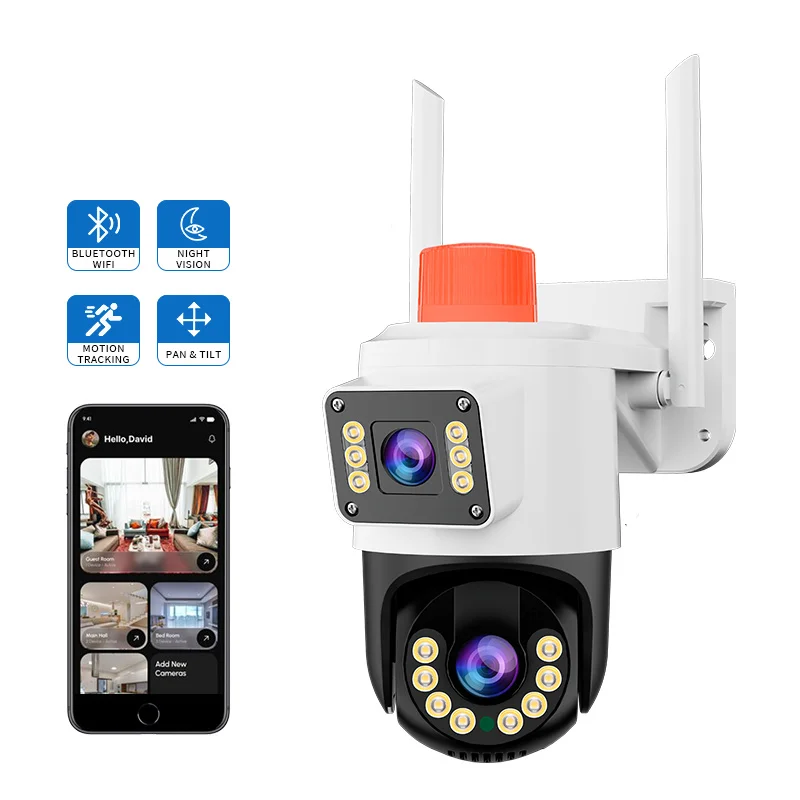

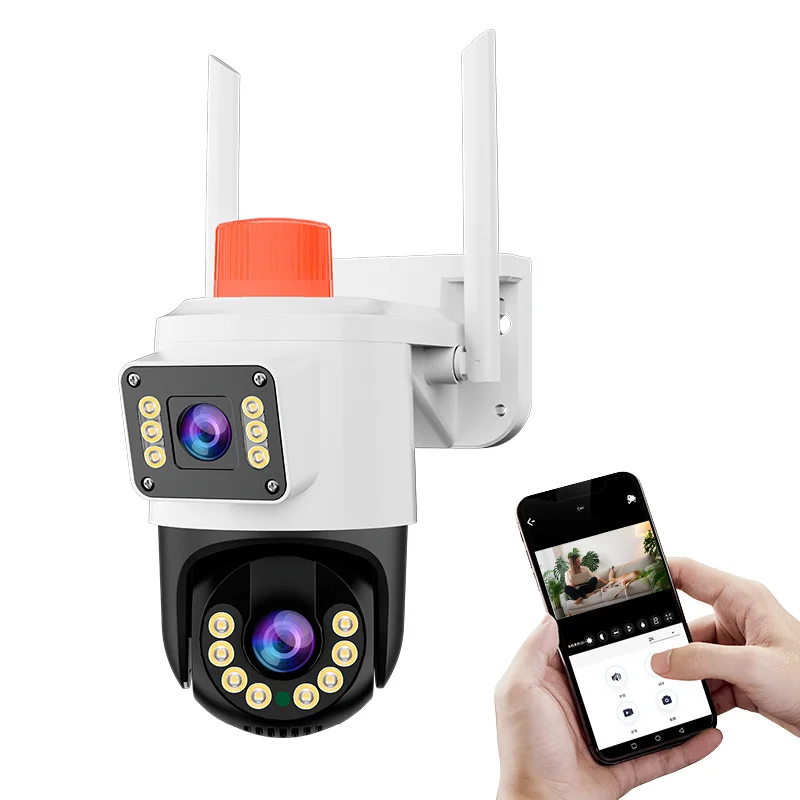

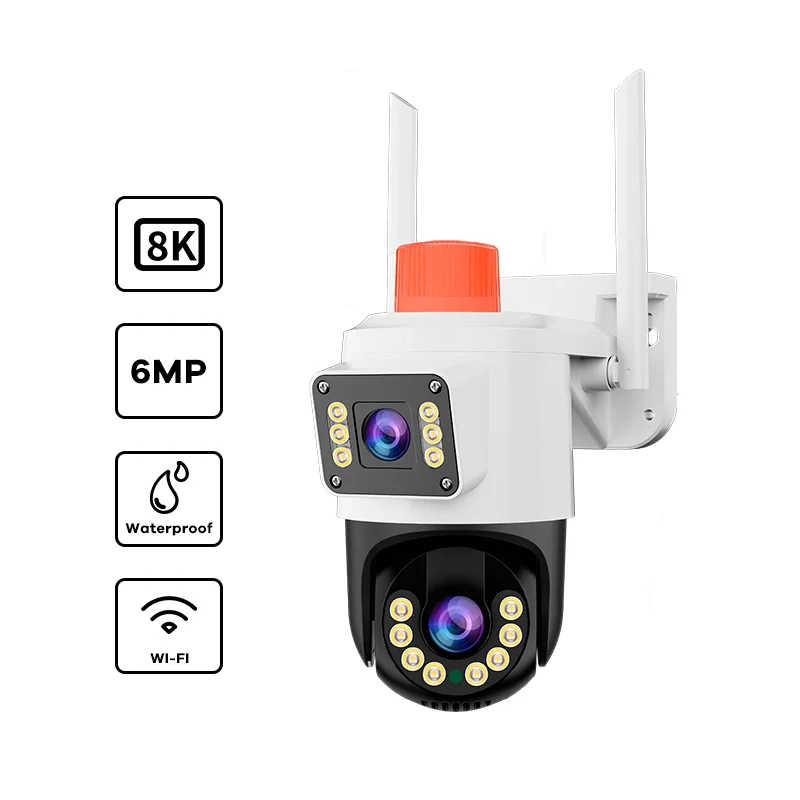

JT-9689【dual camera+ball machine linkage】
|
|
|
master control
|
Dual-core 32-bit DSP (XM650V200), pure hard compression, watchdog
|
|
|
sensor
|
Two 2 million 1/2.8 “SC233A high-performance CMOS sensors
|
|
|
Minimum illumination
|
Color:0.01Lux @(F1.2,AGC ON); 0 Lux with IR；
Black and white:0.001 Lux @ (F1.2,AGC ON),0 Lux with IR |
|
|
shutter
|
1/50(1/60)s to 1/10000s
|
|
|
ocal distance
|
F1.4*3.6MM+F1.4*6MM
|
|
|
noise reduction
|
Support 2D/3D noise reduction
|
|
|
Video format
|
H.265AI
|
|
|
resolving power
|
Main resolution: 1920 * 2160; Sub-resolution: 800 * 896
|
|
|
Frame rate
|
12 fps
|
|
|
Intelligent analysis
|
Support human shape detection
|
|
|
Tracking function
|
Support human shape tracking
|
|
|
light source
|
11 infrared+12 white light
|
|
|
Light mode
|
Starlight full color/infrared night vision/dual light warning
|
|
|
Two-way voice
|
sustain
|
|
|
Cloud storage
|
sustain
|
|
|
Support Agreement
|
Support NETIP protocol and onvif protocol
|
|
|
network interface
|
10M/100M adaptive Ethernet port
|
|
|
Storage interface
|
Local TF card (up to 256G)
|
|
|
Reset key interface
|
Support one-click recovery
|
|
|
Wireless standard
|
IEEE802.11b, 802.11g, 802.11n
|
|
|
frequency range
|
2.4 GHz ~ 2.4835 GHz
|
|
|
Product size
|
223.87*120.26*130.15mm
|
|
|
Color box size
|
230*225*147mm
|
|
|
temperature
|
Zero 10 ° C -60 ° C, humidity less than 90% [no condensation]
|
|
|
Power Supply
|
DC 12V ± 10%
|
|
